Item  Description
Dimension 127*69*121cm
Seat width-depth-height 45cm-45cm-60cm
Wheels Front 10' air tire
Rear 16' air tire
Weight Capacity 200KGS

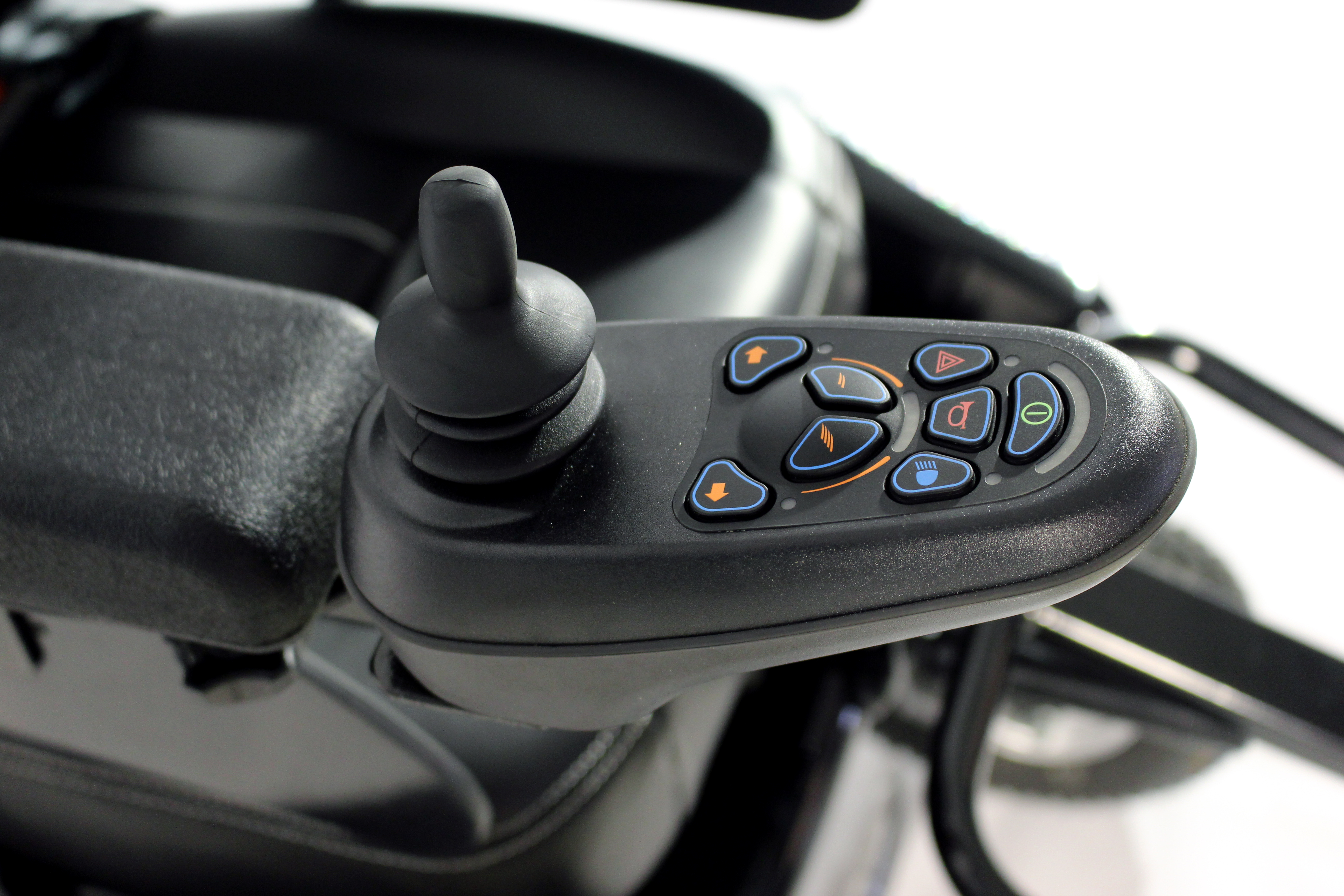

Controller
Motor 24V DC 1000W
Battery Capacity 24V 100Ah
weight 30kg*2
Dimension 33*17.3*22cm*2
Charger 24V x 10AMP
Recharge time 8-10hrs
Incline capability 8-15 degrees
Max speed 15KM/H
Range 80±5km

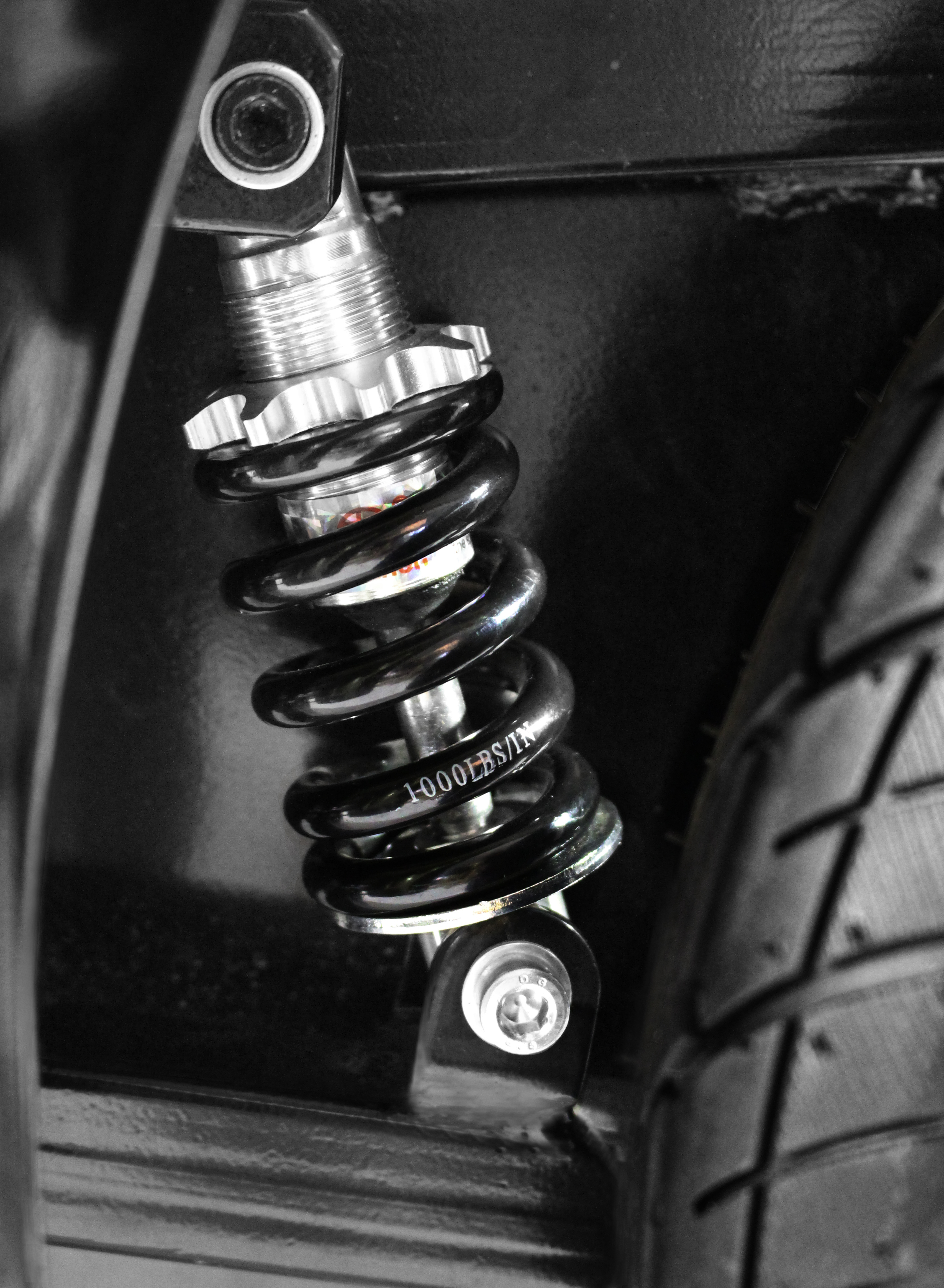

Suspension Front with
Rear without
Net weight（without batteries） 85kg
Gross weight 155kg
Package number 1ctn
size 115*75*85cm
